Beacon 24FT Factory Use Hvls Large Industrial Ceiling Fan
Product Description:

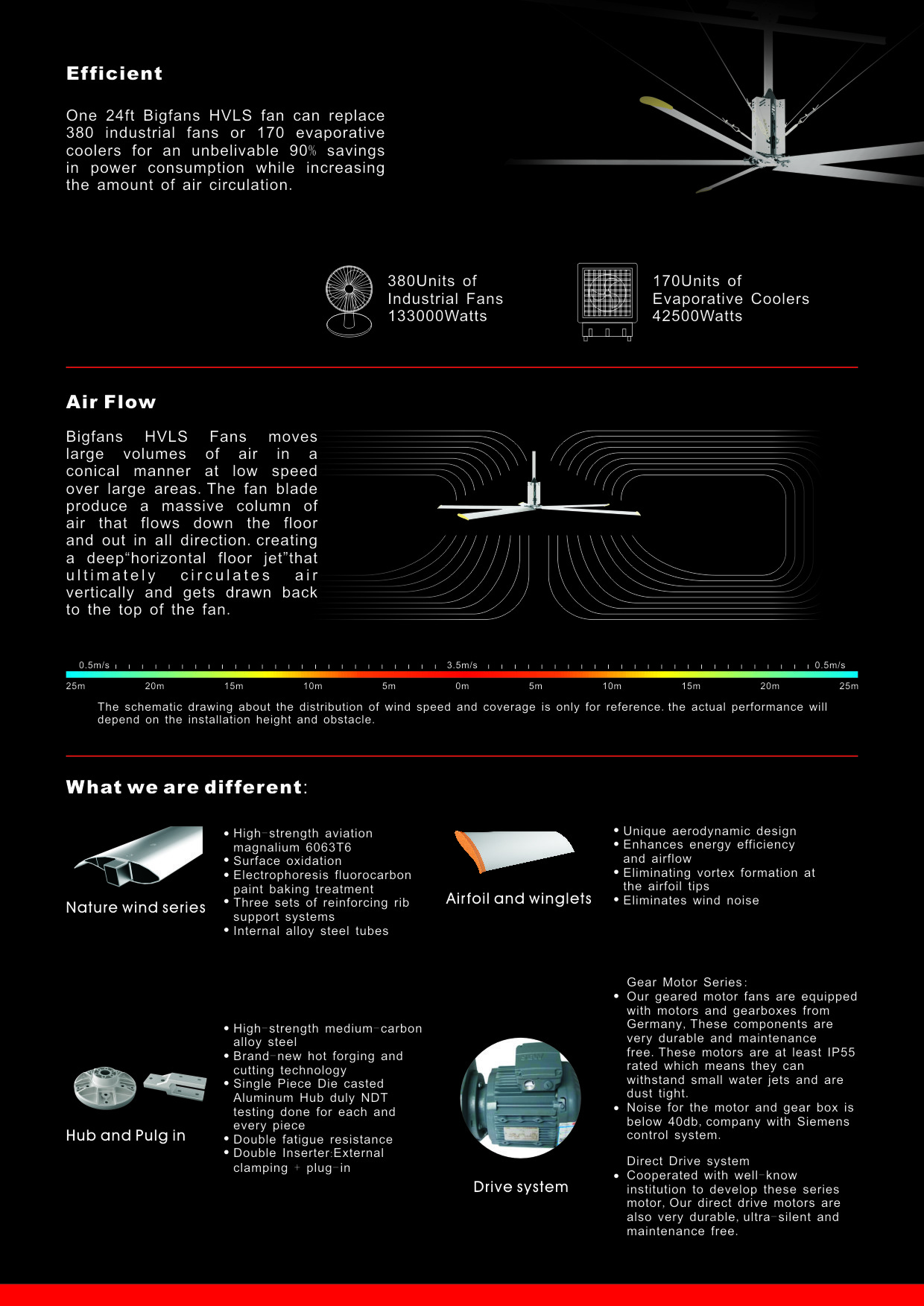

What's industrial hvls fan ? 1.HVLS FAN is a high-volume ,low speed ceiling fan greater than traditional industrial fan .
2.Using with air conditioning ,will effectively reduce energy consumption and improve comfort .
Features:
1. Equipped with a high-precision gear reduction box, it reduces the motor speed while increasing torque, ensuring that the fan blades can still generate strong wind at low speed, taking into account safety and energy efficiency.
2. Reduce mechanical wear from direct motor drive and extend equipment life.
3. Gear box lubrication-free design, the motor is completely enclosed and dust-proof, daily only simple cleaning.
Technical Parameters:
| DIAMETER | 12ft(3.8m) | 16ft(5.0m) | 20ft(6.2m) | 24ft(7.3m) |
| MODEL | BFFCA38 | BFFCA50 | BFFCA62 | BFFCA73 |
| AIR VOLUME | 11050m³/min | 12050m³/min | 13100m³/min | 14060m³/min |
| MAXIMUM SPEED | 95RPM | 75RPM | 60RPM | 55RPM |
| WEIGHT | 68Kg | 90Kg | 110Kg | 125Kg |
| MOTOR POWER | 1.5kw | 1.5kw | 1.5kw | 1.5kw |
| FULL LOAD CURRENT | 2.4Amps/380v 4.2Amps/220v | 2.4Amps/380v 4.2Amps/220v | 3.5Amps/380v 6.1Amps/220v | 3.5Amps/380v 6.1Amps/220v |
Basic Configuration (Model BFFCA73 GEARBOX SERIES) :
Applications:
✔ Large warehouse, cold chain center: prevent goods from mildew, improve the working environment of employees
✔ Automotive, electronics, textile workshop: disperse welding smoke, dust, improve air quality
✔ Stadiums, airports, shopping malls: Solve the problem of hot and stuffy, reduce reliance on air conditioning
✔ Greenhouse, farm: adjust temperature and humidity, promote air circulation, reduce poultry heat stress
Online Technical Guidance Services:
Height < 8 m: recommended blade diameter 5-5.5 m, speed 75 RPM.
Height 8-15 meters: choose 7.3 meters blade, with longer extension tube.
High temperature/high dust environment: fully enclosed motor + anti-corrosion coating configuration is preferred.
Packing and Shipping:
Each fan is securely wrapped and placed in a sturdy wooden box with ample cushioning material to prevent any damage during transit, and a set of big fans is composed of a square box and a long box.
FAQ:
Q: Are you factory or trading company?
A: We are factory which established more than 12 years.
Q: Do you accept OEM?
A: Yes, but we have MOQ requirement
Q: What is your delivery time? A: Usually we have stock, delivery time within 7 working days. If there is customized requirement, time is negotiable. Q: What other services can you provide? A: Accepted delivery terms: FOB,CFR,CIF,EXW,DDP,DDU. Accepted payment type: T/T, L/C;
